Axles Rows of Eight
8-20 Tonnes capacity) with In-board brake drum
Upgrade your commercial vehicle with the TECAIR 5 Road Samrat Air Suspension, engineered for superior strength, smoother rides, and long-lasting performance. With heavy-duty reinforced components and advanced air bellows technology, it enhances stability, reduces wear, and delivers reliable performance.

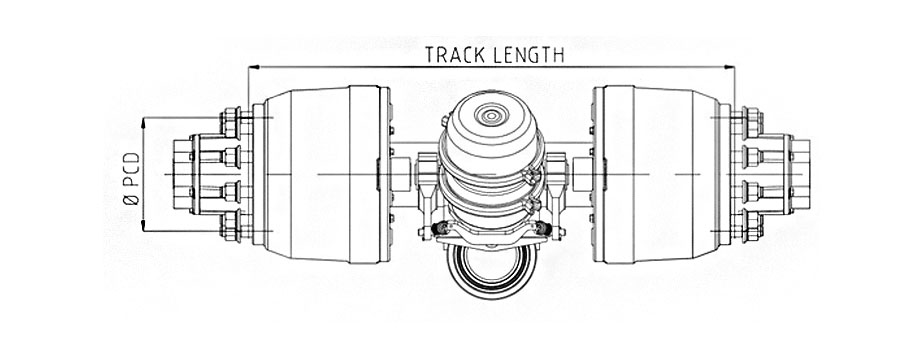

Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Brake Size (mm) &Type | Wheel Fixing | Axle Weights Approx.(Kg) | ||
Stud & Wheel Fixing | PCD (mm) | Wheel Bore Dia.(mm) | ||||||
792273/K0750 | 08.0 | TN | ○ 5″ / 16 Thk. | 311x127 (P) | 10 x M22 ISO | Ø225 | Ø176 | 263 |
792284/K0750 | 08.0 | TN | ○ 5″ / 16 Thk. | 311 x 127 (P) | 10 x M22 ISO | Ø225 | Ø176 | 258 |
792259/K0750 | 10.0 | TM | ○ 5″ / 16 Thk. | 311 x 178 (P) | 10 x M22 ISO | Ø225 | Ø176 | 274 |
792287/K0750 | 10.0 | TN | ○ 5″ / 16 Thk. | 311 x 178 (P) | 10 x M22 ISO | Ø225 | Ø176 | 276 |
790498/K0750 | 12.0 | TM | ○ 5″ / 16 Thk. | 311 x 178 (P) | 10 x M22 ISO | Ø225 | Ø176 | 280 |
789262/K0750 | 12.0 | TM | ○ 5″ / 25 Thk. | 311 x 178 (P) | 10 x M22 ISO | Ø225 | Ø176 | 282 |
789150/K0850 | 12.0 | TM | ○ 5″ / 25 Thk. | 311 x 178 (P) | 10 x M22 ISO | Ø335 | Ø281 | 290 |
789310/K0965 | 12.0 | TM | ○ 5″ / 25 Thk. | 420 x 180 (P) | 10 x M22 ISO | Ø335 | Ø281 | 293 |
793111/K0735 | 12.0 | TM | ○ 5″ / 25 Thk. | 311 x 178 (P) | 10 x M22 ISO | Ø225 | Ø176 | 295 |
793160/K0750 | 12.0 | TM | ○ 5″ / 25 Thk. | 311 x 178 (P) | 10 x M22 ISO | Ø225 | Ø176 | 292 |
793170/K0735 | 12.0 | TM | ○ 5″ / 25 Thk. | 311 x 178 (P) | 10 x M22 ISO | Ø225 | Ø176 | 300 |
789173/K0965 | 20.0 | TQ | ○ 6″ / 32 Thk. | 420 x 220 (P) | 10 x M22 ISO | Ø335 | Ø281 | 315 |
933306/K0375 | 12.0 | TM | ○ 5″ / 25 Thk. | 300 x 150(P) | 10 x M22 ISO | Ø335 | Ø281 | 315 |
Notes:
- 5″ Round Axle – 16mm thick beam is standard for 8-10 Tonnes capacity.
- Twin tyre steel wheel fixings are standard ISO single wheel fixings are also available.
- Min track length -735mm, other track lengths are also available
- Pivot blocks is according to trailers applications & customers request.
- Bearing size/type:
TQ Metric Ø90-Ø100 Bearing,
TM Metric Ø65-Ø90 Bearing,
TN Imperial 2,5/8″ – Ø90 Bearing,
- 20 – 40 tonnes capacity
- High articulation for off -highway applications.
- 8 Stud/10 stud or 20″ & 24″ trilex hubs.
- Pedestal brackets for bolted or welded mounting to trailer chassis.
- Other track lengths & other options available upon request
- For other option please contact with York Team.
