Products
Heavy Duty Axles (14-17 Tonnes Capacity) with Out-board Brake Drum
Products
Heavy Duty Axles (14-17 Tonnes Capacity) with Out-board Brake Drum
Heavy Duty Axles
(14-17 Tonnes Capacity) with Out-board Brake Drum
Upgrade your commercial vehicle with the TECAIR 5 Road Samrat Air Suspension, engineered for superior strength, smoother rides, and long-lasting performance. With heavy-duty reinforced components and advanced air bellows technology, it enhances stability, reduces wear, and delivers reliable performance.
Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Brake Size (mm)& Type | Wheel Fixing | Axle Weight Approx.(Kg) | ||
Stud & Wheel Fixing | PCD (mm) | Wheel Bore Dia.(mm) | ||||||
7651 | 16 | TP | □ 165 X 150 / 16 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | 335 | 282 | 419 |
5651 | 15 | TQ | □ 6″ / 16 Thk. | 420 x 180 (Q) | 10 x M24 / ISO | 335 | 282 | 382 |
5661 | 15 | TP | □ 6″ / 16 Thk. | 420 x 180 (Q) | 10 x M24 / ISO | 335 | 282 | 377 |
7651G | 17 | TP | ○ 165 X 150 / 16 Thk. | 420 x 180 (Q) | 10 x M24 / ISO | 335 | 282 | 380 |
Notes:
- Twin tyre steel wheel fixing are standard. ISO single wheek and twin tyre aluminium wheel fixing are also available.

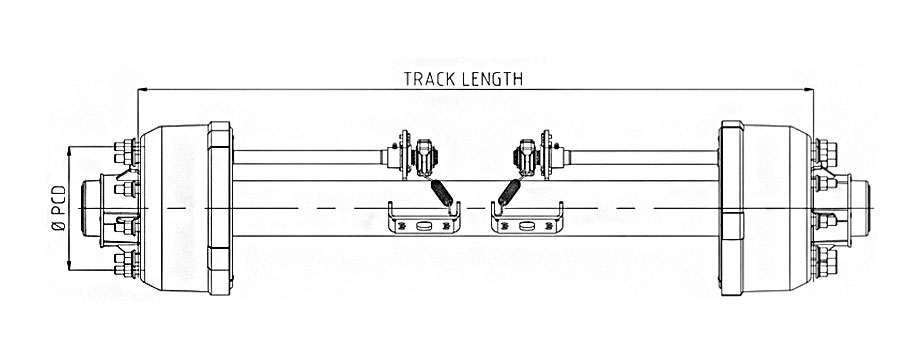

- Standard track length – 1850mm, other track lengths are also available up to 3000mm.
- All axles include standard manual slack adjuster, auto slack adjuster is optional.
- All Axles are available with optional ABS ready Kits.
- Bearing size/type:
TQ Metric Ø90-Ø100 Bearing,
TP Parallel imperial Ø89.6 Bearing,
- 20 – 40 tonnes capacity
- High articulation for off -highway applications.
- 8 Stud/10 stud or 20″ & 24″ trilex hubs.
- Pedestal brackets for bolted or welded mounting to trailer chassis.
- Other track lengths & other options available upon request
- For other option please contact with York Team.
