Self-Steer Axles – Drum Brake
Products
Self-Steer Axles – Drum Brake
Self-Steer Axles
Drum Brake
Upgrade your commercial vehicle with the TECAIR 5 Road Samrat Air Suspension, engineered for superior strength, smoother rides, and long-lasting performance. With heavy-duty reinforced components and advanced air bellows technology, it enhances stability, reduces wear, and delivers reliable performance.
Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Brake Size (mm) &Type | Wheel Fixing | Axle Weights Approx.(Kg) | ||
Stud & Wheel Fixing | PCD(mm) | Wheel Bore Dia.(mm) | ||||||
SS2081 | 12.0 | TM | ○ 5″ / 25 Thk. | 420 x 180 (P) | 10 x M22 ISO | 335 | 281 | 525 |
SS2083 | 12.0 | TM | ○ 5″ / 25 Thk. | 390 x 190 (P) | 10 x M22 ISO | 225 | 176 | 505 |
SS5081 | 14.0 | TM | ○ 6″ / 14 Thk. | 420 x 180 (Q) | 10 x M22 ISO | 335 | 281 | 570 |
Notes:
- Twin tyre steel wheel fixings are standard. ISO single wheel and twin tyre aluminum wheel fixings are also available

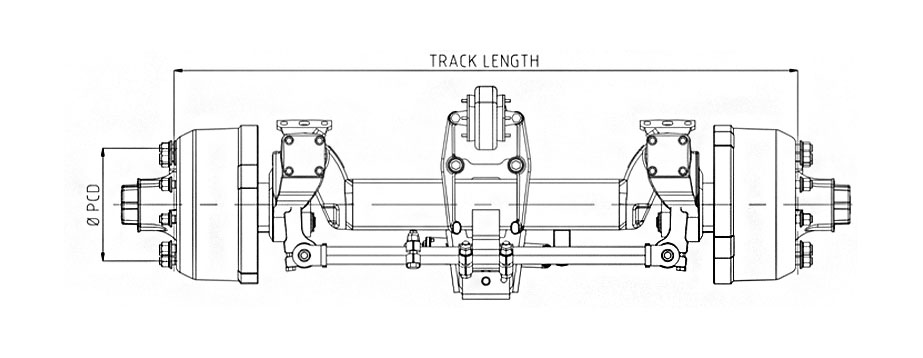

- Standard track length – 1850mm, other track lengths are also available up to 3000mm.
- All Axles are available with ABS ready Kits (Optional)
- Bearing size/type:
TM Metric Ø65-Ø90 Bearing,
- 6″ Square beam Built to handle the toughest loads.
- Steering angle ± 13 Degree
- High-life TM bearing with long Life Grease.
- Heavy-duty Ø420×180 brake shoe for reliable braking.
- M22 Studs to withstand demanding axle loads.
- Forged solid spindles with Induction hardening.
- Better Tyre life in off road & highway conditions.
- Uses high-grade friction materials for brake shoes.
- Easy-to-replace components reduce downtime and maintenance costs.
- Suitable for Side Wall Trailer.
