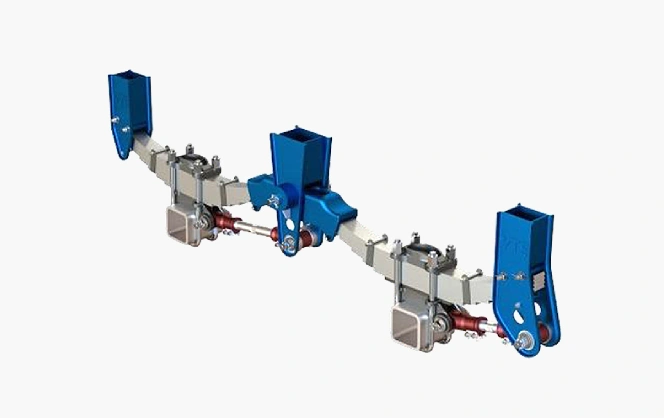

YTE75 FB Mechanical Suspension Overslung Series
Products
YTE75 FB
Mechanical Suspension Overslung Series
Upgrade your commercial vehicle with the TECAIR 5 Road Samrat Air Suspension, engineered for superior strength, smoother rides, and long-lasting performance. With heavy-duty reinforced components and advanced air bellows technology, it enhances stability, reduces wear, and delivers reliable performance.
Capacity | 12 to 13 Tonnes Per Module (MR Series) |
Axle Spacing | 1360mm (Other Axle Spacing available upon request.) |
Ride Height Range | 400-600mm (Other ride heights available upon request.) |
No. of Leaves Range | 08-10 Nos. |

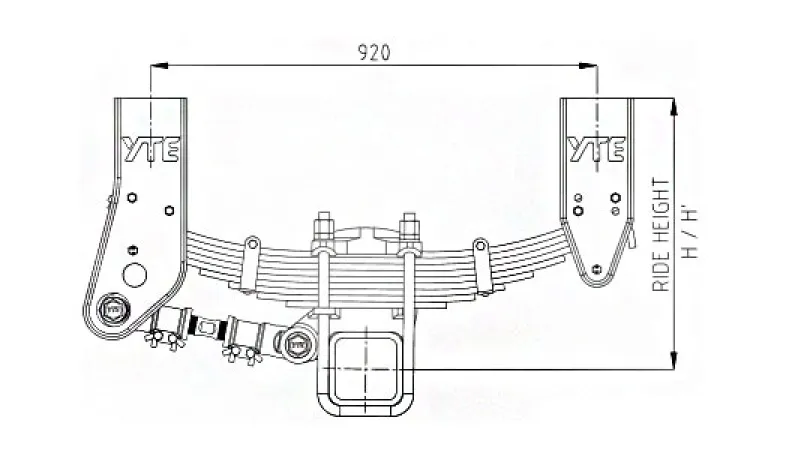

Single Axles Suspension
□ Beam Model No | Ride Height Description | H (mm) | H' (mm) |
MR10-V09S | Short ( SH ) | 535 | 505 |
MR10-V09S | Standard ( ST ) | 560 | 530 |
MR10-V09S | Higher ( HI ) | 585 | 530 |
Dimension
Axle Spacing C (mm) | A (mm) |
1360 | 1120 |

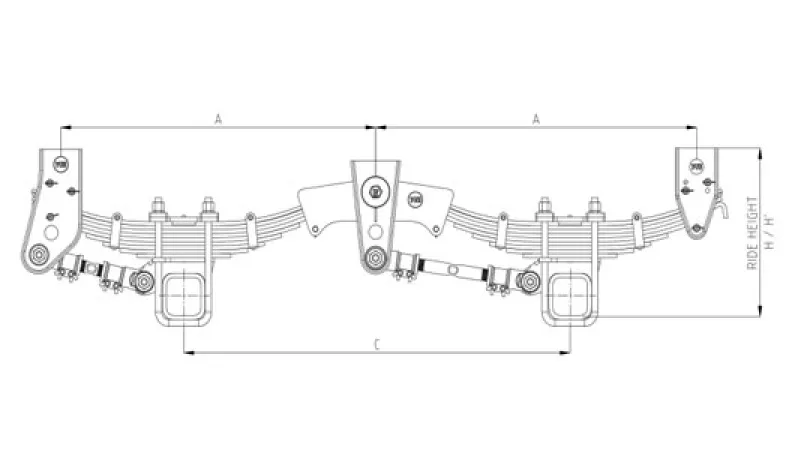

Tandem Axle Suspension
□ Beam Model No | Axle Spacing C (mm) | H (mm) | H' (mm) |
MR2E-V09S | 1360 | 535 ( SH ) | 505 |
MR2E-V09S | 1360 | 560 ( ST ) | 530 |
MR2E-V09S | 1360 | 585 ( HI ) | 530 |

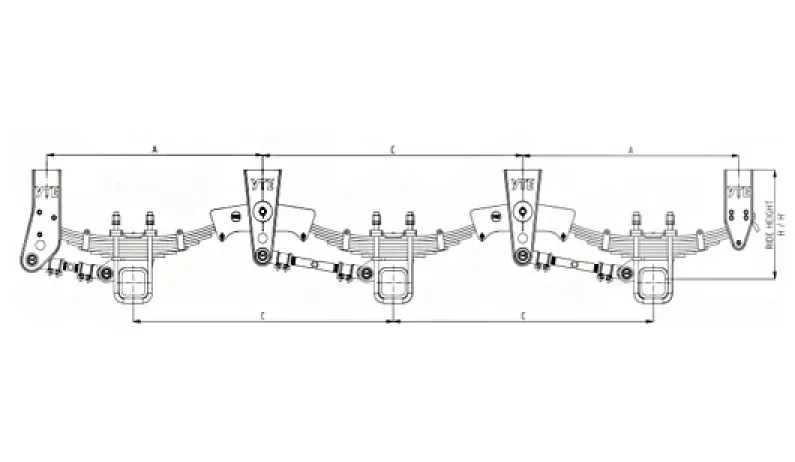

Tri-Axle Suspension
□ Beam Model No | Axle Spacing C (mm) | H (mm) | H' (mm) |
MR2E-V09S | 1360 | 535 ( SH ) | 505 |
MR2E-V09S | 1360 | 560 ( ST ) | 530 |
MR2E-V09S | 1360 | 585 ( HI ) | 530 |
Note:
- Where H = Unladen Height in mm
H′ = Approx. L aden Height in mm - Standard –Ertalon Bush – Optional Vesconite Bush & high life fiber bush is available.
- Suspension with 25mm spring seat configuration is also available, In which kit number ending with #MR***01
- For other options, discuss with York Team.
- Enhanced ground clearance for challenging road conditions.
- Improved load equalization between axles.
- Reduced maintenance requirements and operating expenses.
- Increased suspension life and durability.
- Optional Beam : Square , Round.
