Car Carrier Axles
Products
Car Carrier Axles
Upgrade your commercial vehicle with the TECAIR 5 Road Samrat Air Suspension, engineered for superior strength, smoother rides, and long-lasting performance. With heavy-duty reinforced components and advanced air bellows technology, it enhances stability, reduces wear, and delivers reliable performance.

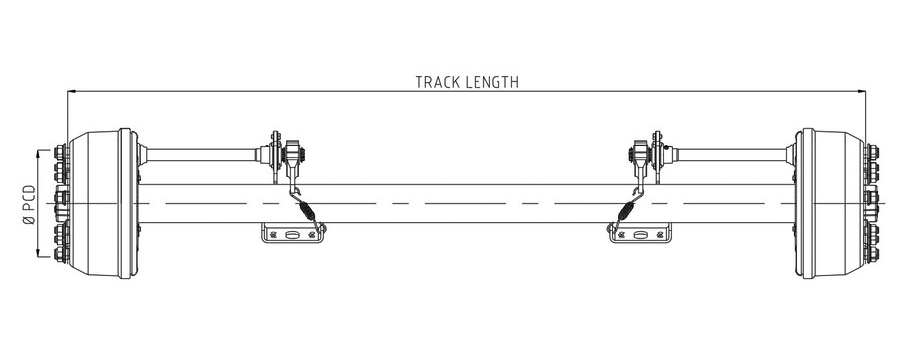

Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Brake Size (mm)& Type | Wheel Fixing | Axle Weight Approx.(Kg) | ||
Stud & Wheel Fixing | PCD(mm) | Wheel Bore Dia.(mm) | ||||||
1600 | 09.0 | TM | ○ 4.725″/ 12 Thk. | 420 x 140 (Q) | 10x M22 Coarse Thread | Ø335 | Ø280 | 300 |
2611 | 11.0 | TM | □ 5″ / 19 Thk. | 420 x 180 (Q) | 10x M22 Coarse Thread | Ø335 | Ø281 | 315 |
Notes:
- For 5″ Round Axle – 19mm standard wall thickness & 25mm optional wall thickness available.
- ISO single wheel fixings.
- Standard track length – 2400mm,other track lengths are also available upto 3000mm.
- All axles include standard manual slack adjuster, auto slack adjusteris optional.
- 2611 ( Off Set 162mmHub)
- Bearing size/type:
TM Metric Ø65-Ø90 Bearing,
- 20 – 40 tonnes capacity
- High articulation for off -highway applications.
- 8 Stud/10 stud or 20″ & 24″ trilex hubs.
- Pedestal brackets for bolted or welded mounting to trailer chassis.
- Other track lengths & other options available upon request
- For other option please contact with York Team.
